Contact Position Sensors: Use Cases for Industrial Implementation
1. What This Covers & Scope
This article covers the operating principles, system architecture, integration requirements, and deployment considerations for contact displacement and positioning sensors in discrete manufacturing and assembly environments. It addresses the three primary internal detection methods, differential transformer, incremental scale, and absolute scale, and is intended for engineers and integrators selecting and implementing these sensors in inline measurement or Go/No-Go inspection stations.
Not covered:
- Specific accuracy or repeatability specs, these vary by model and must be confirmed against vendor datasheets for each application
- High-speed dynamic measurement (contact sensors have slower response than inductive or optical; suitability must be validated per project)
- Safety-rated position feedback for axis homing in safety-critical motion systems — requires separate safety architecture review
- Wireless or IO-Link-specific integration details beyond general signal type guidance
2. System Architecture & How It Works
Sensing Principle

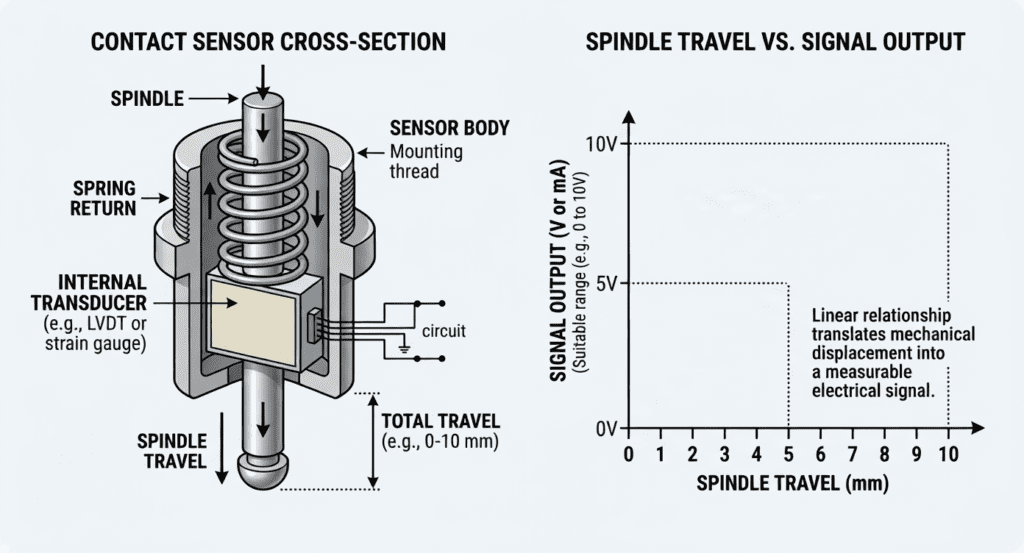

A contact positioning sensor measures displacement by physically extending a spring-loaded spindle against a target surface. As the spindle retracts or extends with surface height changes, the internal transducer converts spindle travel into an analog or digital position signal. The sensor head is fixed; the part moves or is presented to the spindle tip.
Three internal detection methods are in common use:
The differential transformer method attaches a magnetic core to the spindle, which moves inside a wound coil assembly. As core position changes, coil impedance shifts proportionally, and that change converts to a displacement value. Because output derives from signal level rather than a counted sequence, the sensor reports absolute position at any point — no zero-point reset after power loss. In practice, magnetic field uniformity degrades near the coil ends, so accuracy is highest at mid-stroke and drops toward the extremes. Review temperature drift and linearity error against the specific datasheet for tight-tolerance applications.
The incremental scale method counts uniform markings on an internal optical or magnetic scale as the spindle moves. This delivers consistent accuracy across the full measuring range, since uniform scale markings eliminate the coil-end degradation effect. However, abrupt spindle movement from vibration or mechanical shock can cause the counter to lose steps and accumulate a position offset — one that persists until the operator re-zeros the sensor.
The absolute scale method resolves this limitation by reading a unique, non-repeating pattern on a glass scale rather than counting uniform markings. A CMOS sensor reads the pattern and identifies spindle position directly, without any reference move. In practice, this eliminates both the tracking error risk of incremental sensors and the stroke-end accuracy loss of the differential transformer approach.
Signal Output and Data Flow
Contact sensors typically output one of the following:
| Output Type | Typical Use |
|---|---|
| Analog voltage (0–5V, 0–10V) | PLC analog input card, direct to controller |
| Analog current (4–20mA) | Noise-tolerant runs, long cable distances |
| Digital (NPN/PNP discrete) | Go/No-Go threshold switching at controller I/O |
| RS-232 / RS-485 serial | Amplifier to HMI or data logger |
| IO-Link | Smart sensor integration with parameter management |

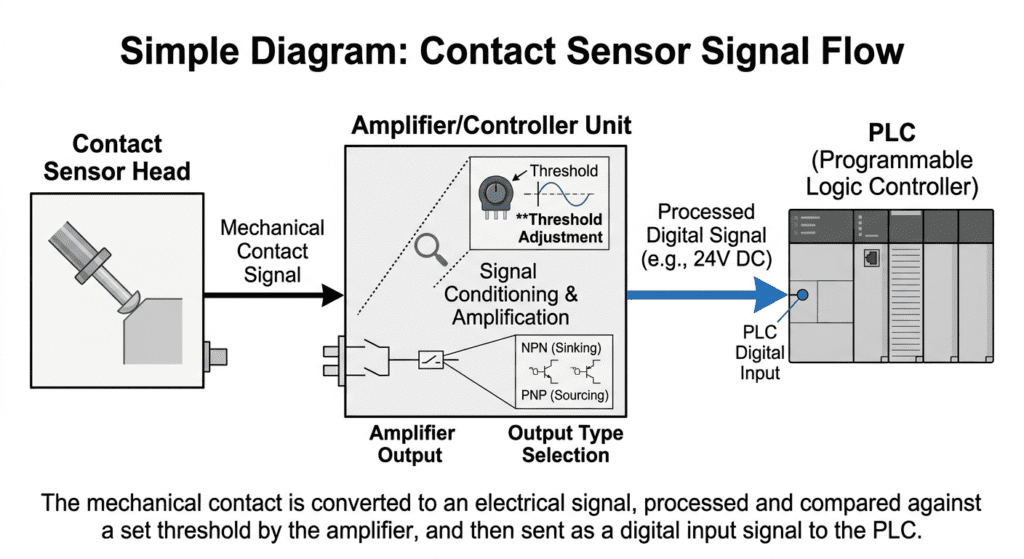

Most contact sensors pair a sensor head with a separate amplifier/controller unit. The amplifier handles thresholding, scaling, and output signal conditioning. Measurement limits and tolerances are set at the amplifier, not the head.
Physical Arrangement
- Sensor head is rigidly mounted above, below, or beside the part depending on the feature being measured
- Spindle tip contacts the target surface; tip geometry (flat, ball, carbide, ruby) selected based on target material and surface finish
- Measuring range is typically a few millimeters; the part must be consistently presented within the sensor’s active stroke
- Air-push variants extend the spindle pneumatically, retracting on contact, useful when the sensor head cannot move closer to the part
3. Integration & Deployment Reality
The integration work on a contact sensor station falls into four areas, and vendor documentation covers only the first of them in any detail.
PLC and controller interface drives most of the commissioning effort. For Go/No-Go applications, the integrator sets thresholds at the amplifier and wires the discrete output to a PLC digital input, straightforward logic with no analog scaling. For measurement applications, the PLC program must scale the analog output into engineering units. The vendor datasheet provides the nominal output range; the integrator writes the scaling logic, manages the zero offset, and handles any dead-band requirements.
When a trigger input gates measurements to a specific point in the machine cycle, verify the timing relationship between the PLC trigger output and the amplifier sample, a response delay between trigger and valid output typically exists, and the sequence must account for it.
Electrical and cabling work is straightforward but frequently cut short. Use shielded cable for analog output runs and route away from VFD output lines, unshielded cable near high-frequency switching sources produces noise that looks like measurement scatter. Address ground loops between the amplifier and PLC analog input card with single-point grounding practice; ground loops cause baseline drift that is difficult to trace once production starts. Contact sensors generally tolerate oil, dust, and coolant that would compromise optical sensors — verify the IP rating for the specific environment, but contamination is rarely the limiting constraint here.
4. Common Failure Modes & Root Causes
Spindle and Mechanical Failures
Spindle-related failures are the most common category and also the most preventable. Spindle seizure, where the output locks at a single value regardless of part height, is caused by contamination entering the spindle bore or a mechanical jam from a misloaded part. Erratic output almost always traces to side-loading, when the part doesn’t present squarely to the spindle axis, lateral force on the guide introduces friction and play that shows up as measurement noise. A CMM measurement of the same part would show it is perfectly consistent. Spindle tip wear is more insidious because the drift is gradual enough to go undetected until a master part check or Gauge R&R reveals the station has lost capability.
Electrical and Signal Failures
Output saturation is a fixture or setup problem that gets misdiagnosed as a sensor fault. Amplifier threshold drift is the most dangerous failure in this category, it produces no alarm, and the system continues running while making incorrect accept/reject decisions.
Incremental Scale Specific
Incremental sensors accumulate position offset when vibration or aggressive part loading moves the spindle faster than the scale reader can follow. The resulting symptom, a consistent offset on all readings, distinguishes it from random noise, but operators often misread it as zero drift and re-zero rather than investigating the root cause.
6. Key Questions Before Committing
- What is the target material and surface finish, and will the spindle contact force cause marking, deformation, or measurement error under production conditions?
- What is the available time window for measurement within the machine cycle, and can the spindle fully extend, contact, stabilize, and retract within that window at the required line speed?
- Does the application require absolute position output (no zero-point reset after power loss or E-stop), and if so, is an absolute-scale sensor specified rather than an incremental type?
- What is the thermal range of the installation environment across all operating conditions, and has the sensor’s temperature coefficient been reviewed against the required measurement accuracy?
- How will the sensor output be consumed — Go/No-Go threshold switching, analog measurement, or data logging — and is the PLC I/O and amplifier configuration matched to that requirement?
- What is the maintenance plan for spindle tip inspection and replacement, and who owns re-validation of measurement accuracy after a tip swap?
7. Comparison to Alternatives
The table below reflects general technology characteristics. Specific performance figures are not assumed and must be confirmed per vendor datasheet and validated per application.
| Attribute | Contact Sensor | Inductive Displacement | Laser Triangulation | Ultrasonic |
|---|---|---|---|---|
| Target material | Solid only | Metal only | Almost all | Almost all |
| Requires physical contact | Yes | No | No | No |
| Accuracy | High | High | High | Low |
| Response speed | Slow | Fast | Moderate | Slow |
| Measuring range | Short (<10mm typical) | Short | Short–moderate | Long |
| Performance in contamination | Unaffected | Unaffected | Degraded by dust/oil | Moderate |
| Susceptibility to surface finish | Low | High (metal only) | Moderate (reflectivity) | Low |
| Absolute position without homing | Yes (scale/LVDT types) | Depends on model | Depends on model | No |
Practical selection guidance:
- Use inductive displacement when the target is metal, non-contact is required, and fast response (e.g., in-process gauging on a moving part) is needed. No contact wear; suitable for higher cycle rates.
- Use laser triangulation when the target cannot be contacted and surface finish is controlled enough to produce a consistent reflection. More sensitive to contamination and surface angle than contact sensors.
- Use ultrasonic when measuring range needs to be large or the target is a liquid surface, foam, or other material that defeats optical sensing. Accuracy is lower; not suitable where tight tolerances are required.
- Stick with contact when the environment is contaminated, the target is solid and can accept contact, absolute position is needed without homing, and measurement range is within the sensor’s stroke.
8. Calibration & Validation
Pre-Deployment Calibration

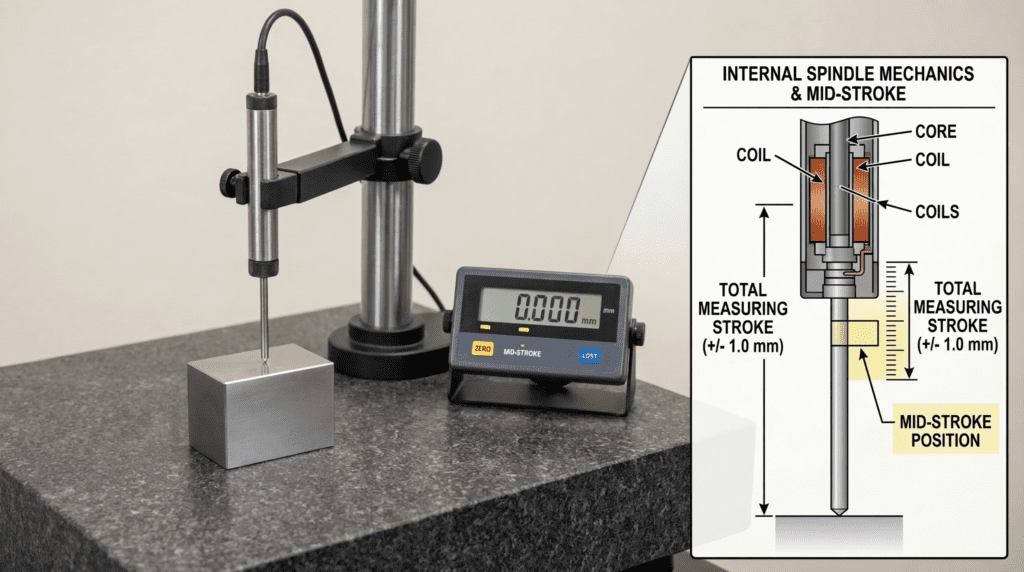

Calibration before production release means more than confirming the sensor produces a signal. For differential transformer and incremental sensors, establish the zero-point reference with the spindle at mid-stroke against a traceable gauge block or master part, not against a mechanical stop. Setting zero at the spindle’s mechanical limit places the working range in the least accurate portion of the stroke.
Absolute scale sensors don’t require zero initialization but verify them against a traceable master at installation to confirm the amplifier scaling is correct. Span verification across the full expected measurement range catches problems that a simple power-on check misses. Apply gauge blocks of known height at both ends of the expected part range and confirm the amplifier output tracks proportionally. Any nonlinearity at stroke extremes signals the integrator to restrict the working range to the center portion of travel, which may require a fixture adjustment to keep parts within that window.
For differential transformer sensors in environments with meaningful thermal variation, calibrate after the system has reached operating temperature, not at ambient. A 15–20°C difference between calibration and operating conditions produces a baseline offset that appears as measurement drift once the machine warms up, and tracing it back to calibration temperature is time-consuming.
Production Validation
- Run a Gauge R&R study (minimum 2 operators, 10 parts, 2–3 replicates) before releasing the station to production. Acceptable gauge capability thresholds (%GRR, ndc) must be defined by the quality engineer and are not set by the sensor vendor.
- Establish a master part check interval — a known-dimension reference part measured at the start of each shift or after a defined number of cycles. Any drift from the master triggers re-zeroing or maintenance review.
- Document spindle tip condition as part of the master check. Tip wear causes baseline drift that can pass undetected until a Gauge R&R re-run reveals degraded capability.
- After any maintenance event that disturbs the sensor mount or tip (swap, cleaning, re-torque of mounting hardware), full re-verification against the master is required before returning to production. Vendor documentation covers sensor specs; re-validation protocol is the integrator’s responsibility.
